OA-90
OAWELL
OAWELL China Quality OEM Facotry for POS machine system located in China , Guangzhou City

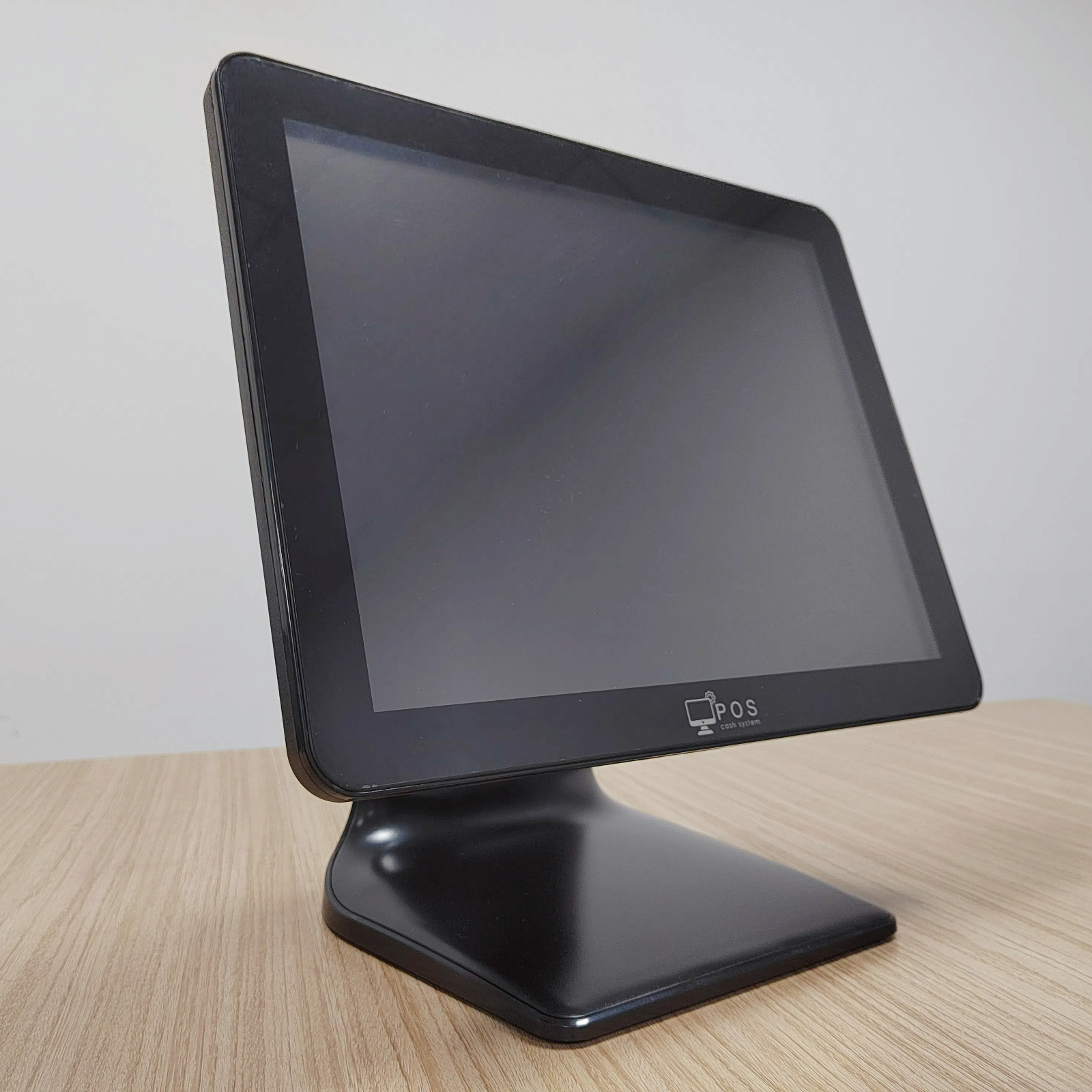

OA-90 POS model is good sale POS terminal with 15 inch square size, Good design , Good quality , Best price for POS in Market .
We always aiming to Quality firstly for all of our POS hardware we produced , The material we use are all A+ class level to ensure the POS machine can be use for long time in stable quality
| OA-90 Touch Screen POS Terminal | ||
| Advantages | * High efficient touch screen seek | |
| * Using Intel i 5 Indurstry Motherboard | ||
| * Using Fast speed , Convenient using SSD 128 G or Higher with HDD together | ||
| * Higher operating speed meet all demands in stably | ||
| * Modular design & convenient maintenance | ||
| Item |  OA-90 | |
| CPU | Intel core i 5, 5300U / 5200U Indurstry Motherboard | |
| 2.2/3.7 Ghz max | ||
| DDR3 1333/1600 | ||
| Intel VT-x | ||
| Turbo Boost Support | ||
| Intel HD Graphics 4600 | ||
| Menory | 8G / 32 G max | |
| Storage | 128G or Higher | |
| Expansion Slots | 1 * MiniPCI-E connector | |
| 1* PCIex1 slot | ||
| Storage | 1 * Serial ATA3 6Gb/s connector | |
| 1* Serial ATA2 3Gb/s connector | ||
| 1 * M-SATA Connector | ||
| Audio | ALC887 Audio CODEC | |
| HD Audio CODEC | ||
| Ethernet LAN | Realtek® RTL8111F Chip | |
| PCI Express Gigabit LAN | ||
| Support Fast Ethernet Lan Function of providing 10/100/1000 Mbps Ethernet data transfer rate | ||
| LVDS | Onboard 24-bit Dual channel | |
| Internal I / O | 1* USB 2.0/1.1 headers for 2 USB 2.0/1.1 ports 2*CPU / Chassis Fan connectors 4*COM headers 1*Parallel header 1*PS2/KB header 1 *4-pin ATX 12V Power connector 1 *4-pin SATA Power connector 1 *15-pin VGA header 1 *24-bit Dual Channel LVDS header 1 *GPIO header 1 *Mini PCI-e connector 1 * M-SATA Connector 1 * Audio header 1 * Front panel audio header | |
| BIOS | AMI 32MB DIP Flash ROM | |
| Form Factor | Thin mini ITX Form Factor(170mm X 170mm) | |
| OS | Win 10 / Windows 11 Pro Pre-installed | |
| Video Memory | Max Support 224MB Dynamic Video Memory | |
| SSD | 128 G or higher | |

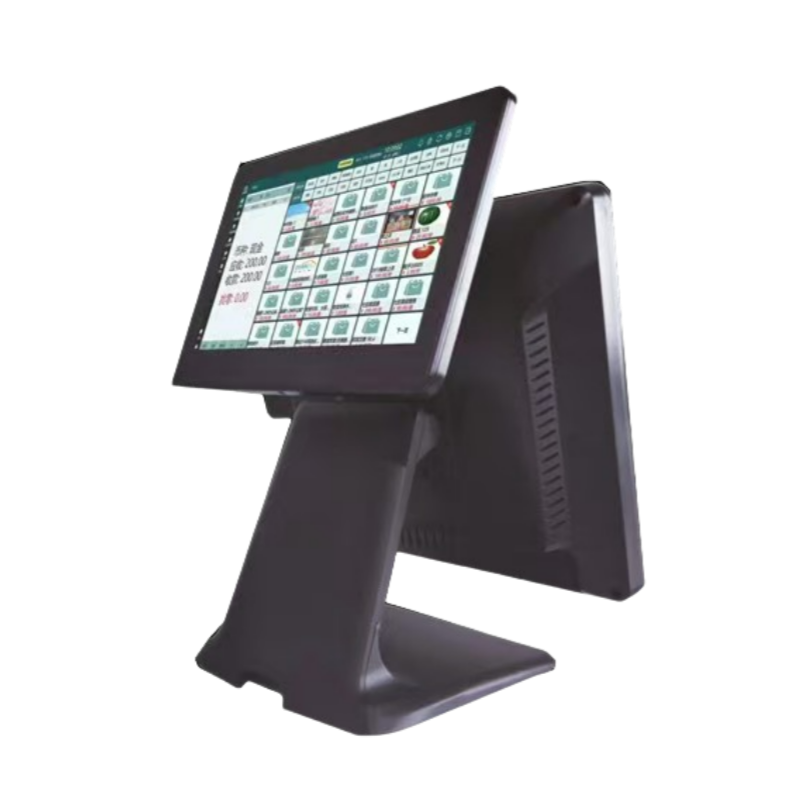

| Customer display | LCD 2 lines customer display or 9.7 " second screen /15 " screen moniter display optional | |
| LCD | 15 inch Touch LCD | |
| Brightness | 250cd/m2 | |
| Resolution | 1024x768(max) | |
| Touch Screen | Capacitive touch screen | |
| Visible Angle | Horizontal: 140, Vertical: 130 | |
| Operation Temperature | 0°C to 40°C | |
| Storage Temperature | -20°C to 40°C | |
| Weight | 6.5 KG | |
| Size | 42x 42x 38cm | |
| Power | DC 12V Outer Adapter Input | |
| www.oawell.com | ||
| Oawell products co. ltd | ||
Good using for Retail store , Restaurant , Hotel , Supermaket , Bars etc in Good price POS hardware machine system
