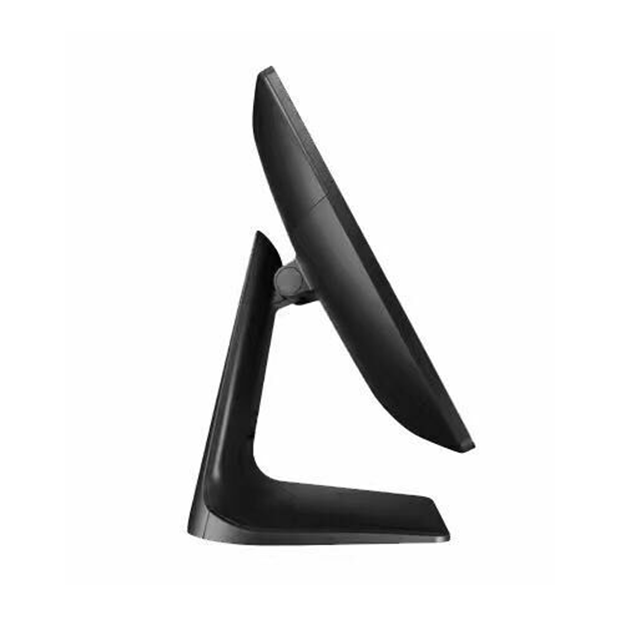

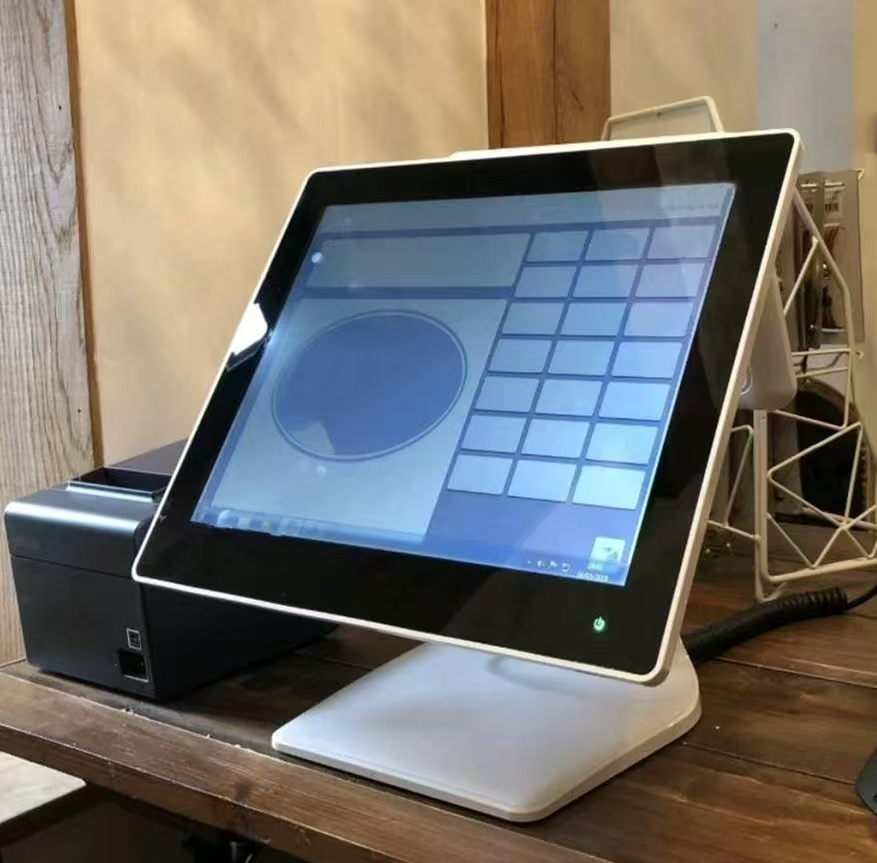

OA-9000W
OAWELL
| Specification : | ||
| Item | OA-9000 | |
| CPU | Onboard INTEL® Core i3-5500U (2.0GHz ) CPU, 3MB Cache, | |
| TDP 17W | ||
| 2 Phase CPU Power Support | ||
| I.O Chipset | ITE IT8785E | |
| VGA | INTEL® HD Graphics’ 4000 | |
| Memory | 8 G RAM | |
| 1*SO-DIMM slot | ||
| Support DDR3 1333/1066/800 | ||
| Max. capacity of system memory up to 16GB | ||
| Expansion Slots | 1 * MiniPCI-E connector | |
| 1* PCIex1 slot | ||
| Storage | 1 * Serial ATA3 6Gb/s connector | |
| 1* Serial ATA2 3Gb/s connector | ||
| 1 * M-SATA Connector | ||
| Audio | ALC887 Audio CODEC | |
| HD Audio CODEC | ||
| Ethernet LAN | Realtek® RTL8111F Chip | |
| PCI Express Gigabit LAN | ||
| LVDS | Onboard 24-bit Dual channel | |
| USB | 6* USB 2.0/1.1(4distribute in back panel, 2 distribute in mid-board) | |
| Special Features | Support DirectX 10.1 3D Graphics Acceleration Support DDR3 1333/1066/800 Integrated HD Audio CODEC Support PCI Express Gigabit LAN Support Power Onboard(12V) Onboard 1*MiniPCI-E connector Onboard 1 *M- SATA connector 1+1 Phase CPU Power Support Support Slim Fan design Support Slim hard drive design Support Thunder Protection Function | |
| Back Panel I / O | 4* USB 2.0/1.1 ports 1* RJ-45 port 1* Line-out connector 1* MIC connector 1 * VGA port 1* HDMI port 1* 12V DC in | |
| Internal I / O | 1* USB 2.0/1.1 headers for 2 USB 2.0/1.1 ports 2*CPU / Chassis Fan connectors 4*COM headers 1*Parallel header 1*PS2/KB header 1 *4-pin ATX 12V Power connector 1 *4-pin SATA Power connector 1 *15-pin VGA header 1 *24-bit Dual Channel LVDS header 1 *GPIO header 1 *Mini PCI-e connector 1 * M-SATA Connector 1 * Audio header 1 * Front panel audio header | |
| BIOS | AMI 32MB DIP Flash ROM | |
| Form Factor | Thin mini ITX Form Factor(170mm X 170mm) | |
| Outer I/O Interface | RJ-45 LAN Port x 2; PS/2 Keyboard Port x 1 | |
| VGA Port x 1; USB2.0 x 4 | ||
| Serial Port x 4; Parallel Port x 1 | ||
| DC Power Port x 1 | ||
| Optional | Card Reader LCD 2 lines customer display , 10.4 inch advertising moniter | |
| Video Memory | Max Support 224MB Dynamic Video Memory | |
| SSD | 128 G SSD or 256G ssd or higher | |
| LCD | 15" TFT LCD | |
| Brightness | 250cd/m2 | |
| Resolution | 1024x768(max) | |
| Touch Screen | Capacitive touch screen | |
| Visible Angle | Horizontal: 140, Vertical: 130 | |
| Operation Temperature | 0°C to 40°C | |
| Storage Temperature | -20°C to 40°C | |
| Power | DC 12V Outer Adapter Input | |
| Oawell products Co ltd | ||
